Classic Rifle Adapter & Picatinny Rail

The Classic Rifle Adapter & Picatinny Rail enables Spartan Javelin and SpringBok Bipods, Ascent, Hoplite, and Sentinel Tripods, SpringBok Quad Sticks, and Davros Heads to be attached and detached in seconds to rifles with dual sling stud mounting points. A section of Picatinny rail allows the adapter to be used in combination with other accessories.

Find a stockist

Features

Enables use of our Javelin Bipod in fixed target and traversable hunting modes
Compatible with hunting rifles that feature dual sling stud mounting points
Includes multiple screw options
Quick-Detach (QD) sling stud point

Specifications

20 g / 0.7oz
Hard-anodized 7075-T7351 aluminum

Spartan Promise

Our unique guarantee is designed to support you before, during, and after your hunt. Combining expert gear advice, ongoing aftercare, and the Spartan Promise, so you can get more out of every piece of gear.

For more information, please visit our Spartan Promise page.

Product Guide

View the Product Guide Here

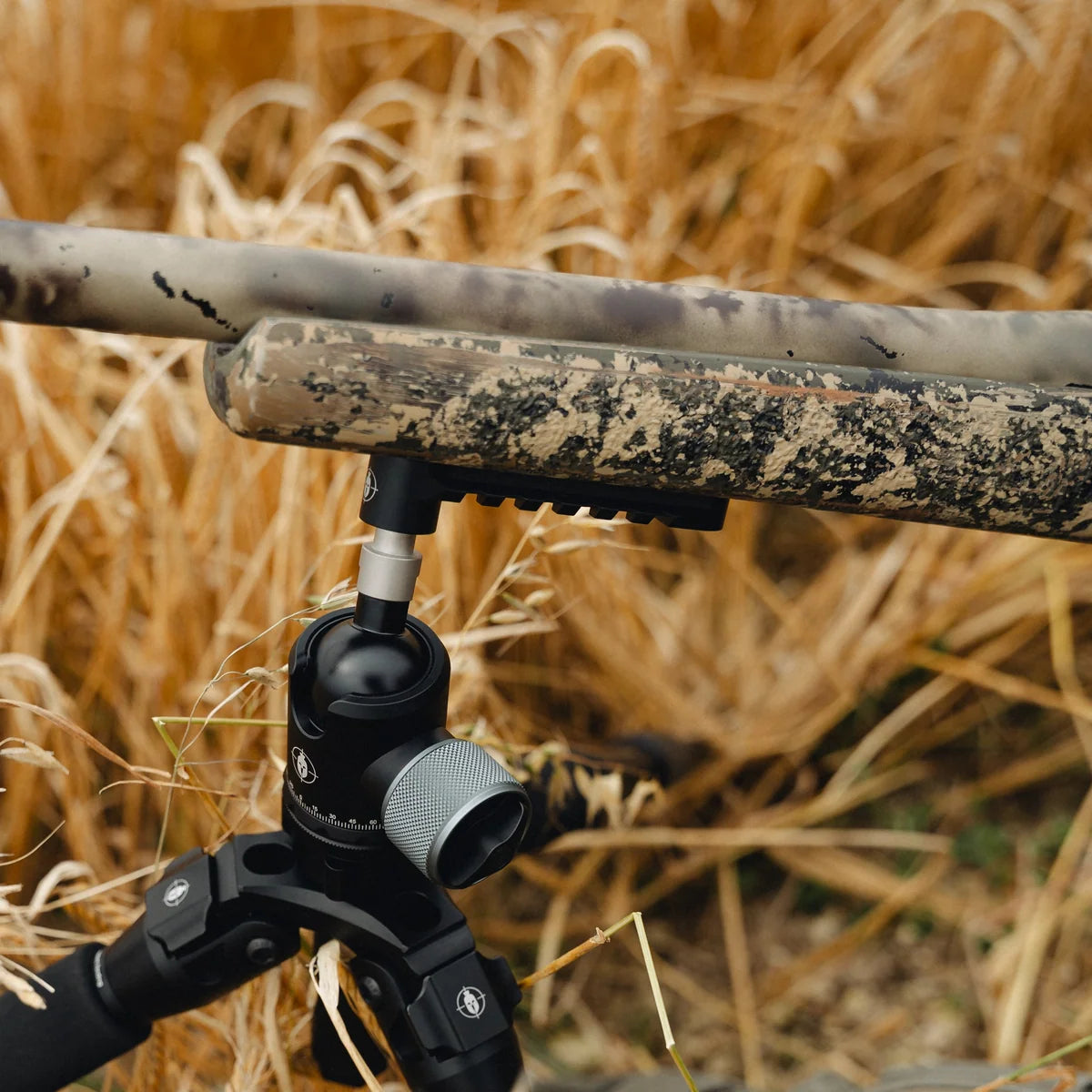

Dual Sling Stud Mounting

Designed for rifles with two sling studs on the forend. Simply remove your existing sling studs and secure the adapter in place using the supplied screws. The forward screw threads through the spigot to form the MagnaSwitch™ connection, while the second rearward screw mounts along the sliding rail cutout of the adapter, located in the centre groove of the Picatinny rail. This allows the adapter to fit a maximum sling stud spacing of 63mm (2.5").

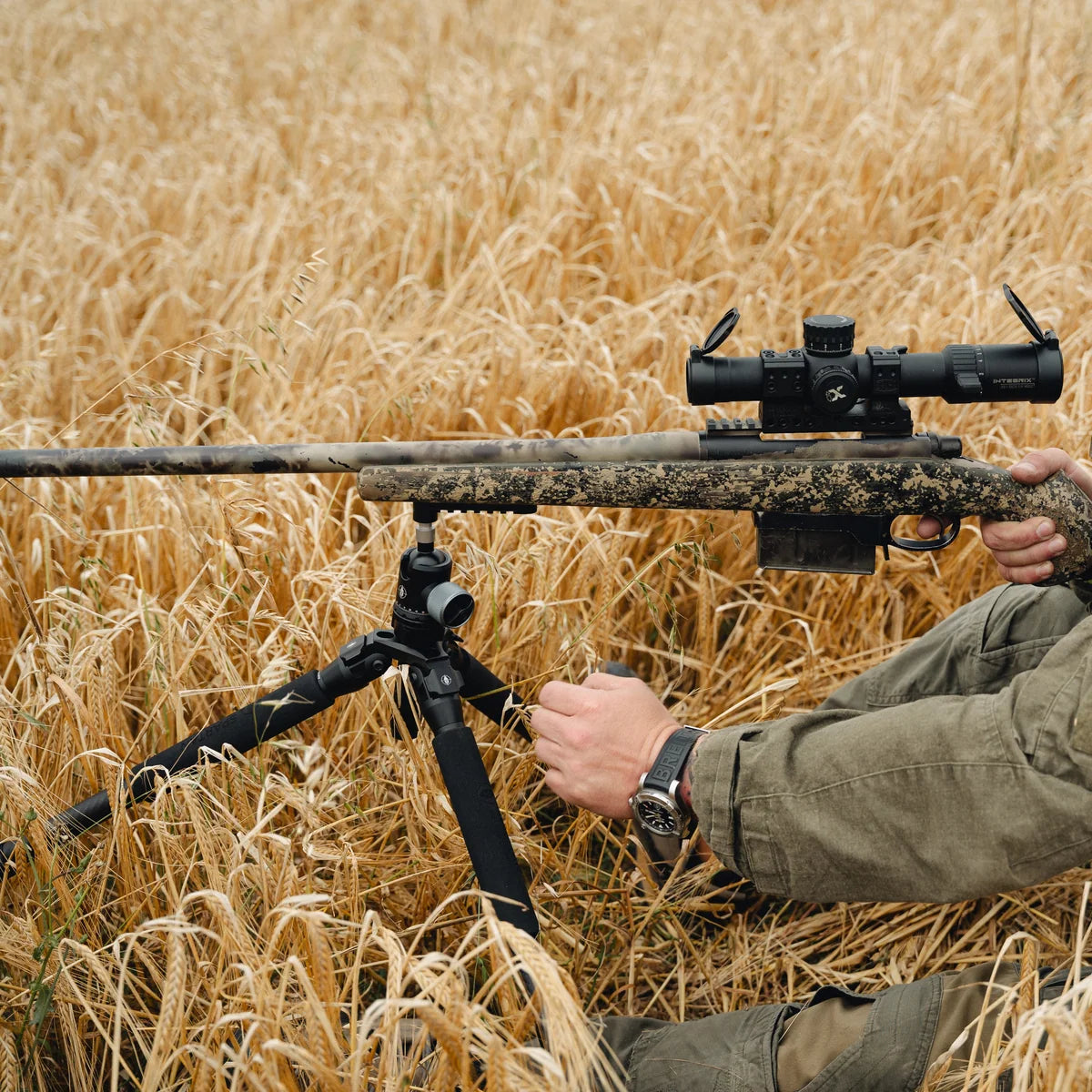

Integrated Picatinny Rail & QD Receiver

A short section of Picatinny rail gives you a dedicated mounting point for lights and other accessories, so you don’t have to choose between your bipod and the rest of your kit. At the thinnest end of the adapter sits a QD sling swivel receiver, compatible with most common QD swivels between 9.5mm and 10mm (0.37" to 0.4") in diameter. At just 25g, it adds all of this to your rifle with barely any extra weight.

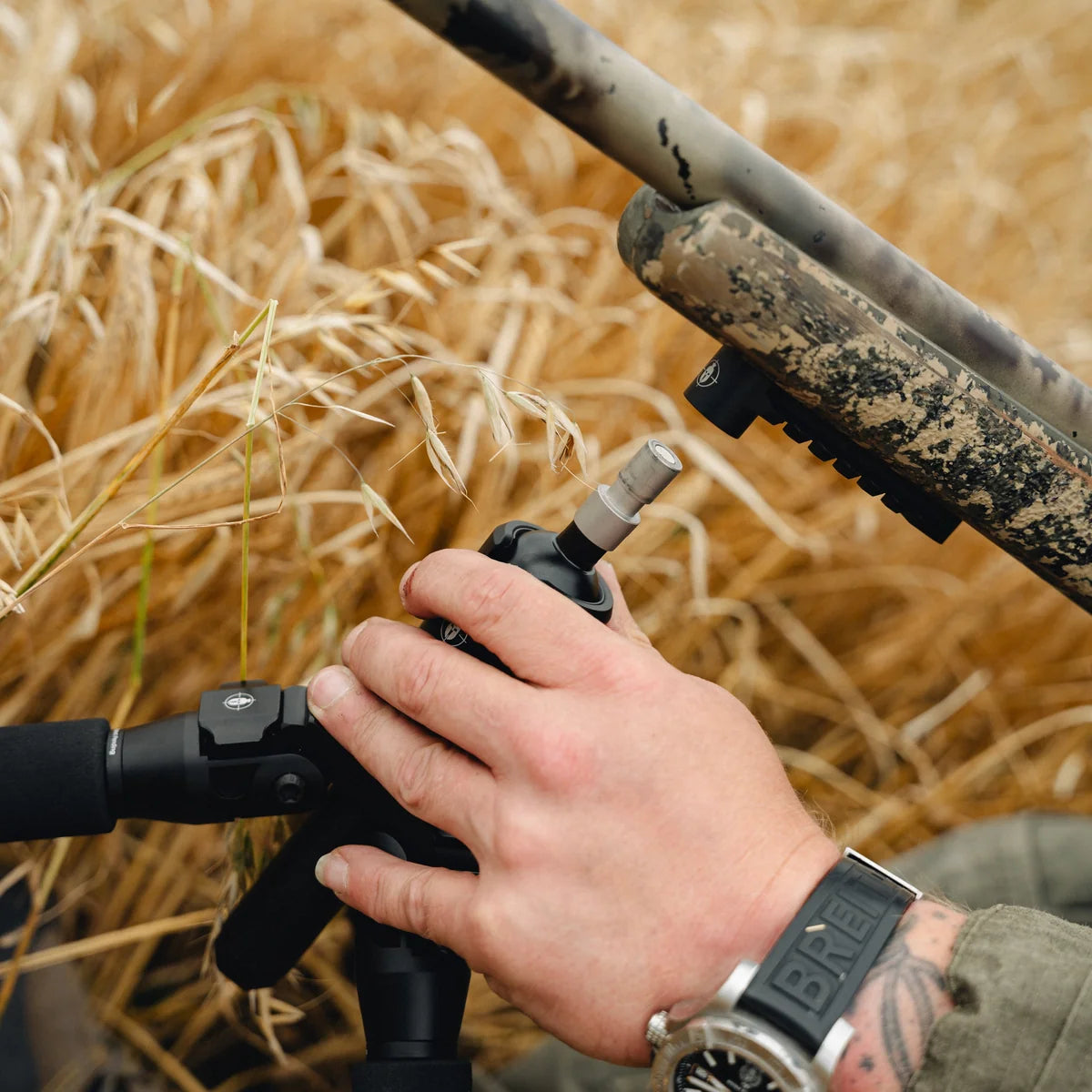

MagnaSwitch™ Attachment System

This adapter uses our MagnaSwitch™ magnetic connection, letting you attach and detach your support gear in seconds without tools. You can switch between support systems in the field as the ground and the shot change, moving from a bipod on the hill to a tripod for a standing shot with a simple switch on and off.

Explore More Details

Weight0.8oz / 25g
Overall Length3.74” / 95mm
Maximum Stud Spacing2.5” / 63.5mm
CompatibilitySpartan Javelin and SpringBok Bipods, Ascent, Hoplite, and Sentinel Tripods, SpringBok Quad Sticks, and Davros Heads
Included Hardware10-32 UNF Locking Nut, M5 x 15mm washer 10-32, UNF X 3/4 Low Cap Head Screw, 10 Gauge x 1" Wood Screw, 10/32 x 1/2” Engineering Screw, 10/32 x 5/8" Engineering Screw, 10/32 x 1" Engineering Screw
MaterialsHard-anodized 7075-T7351 aluminum

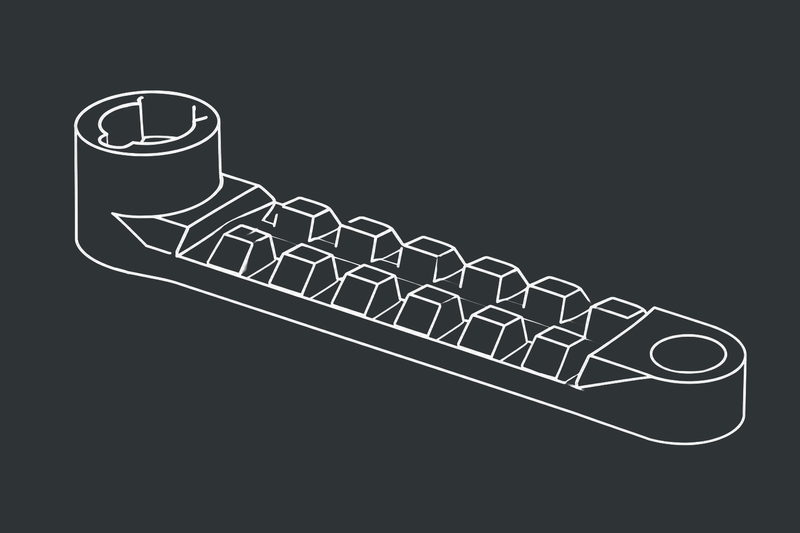

Technical Specifications

Weight0.8oz / 25g
Overall Length3.74” / 95mm
Maximum Stud Spacing2.5” / 63.5mm
CompatibilitySpartan Javelin and SpringBok Bipods, Ascent, Hoplite, and Sentinel Tripods, SpringBok Quad Sticks, and Davros Heads
Included Hardware10-32 UNF Locking Nut, M5 x 15mm washer 10-32, UNF X 3/4 Low Cap Head Screw, 10 Gauge x 1" Wood Screw, 10/32 x 1/2” Engineering Screw, 10/32 x 5/8" Engineering Screw, 10/32 x 1" Engineering Screw
MaterialsHard-anodized 7075-T7351 aluminum

FAQs

What Is Included With The Classic Rifle Adapter + Picatinny Rail Kit?

The kit comes with everything you need to install the bipod onto rifles with dual sling stud mounting points:

Classic Rifle Adapter + Picatinny Rail
10-32 UNF Locking Nut
M5 x 15mm washer
10-32 UNF X 3/4 Low Cap Head Screw
10 Gauge x 1" Wood Screw
10/32 x 1/2” Engineering Screw
10/32 x 5/8" Engineering Screw
10/32 x 1" Engineering Screw
