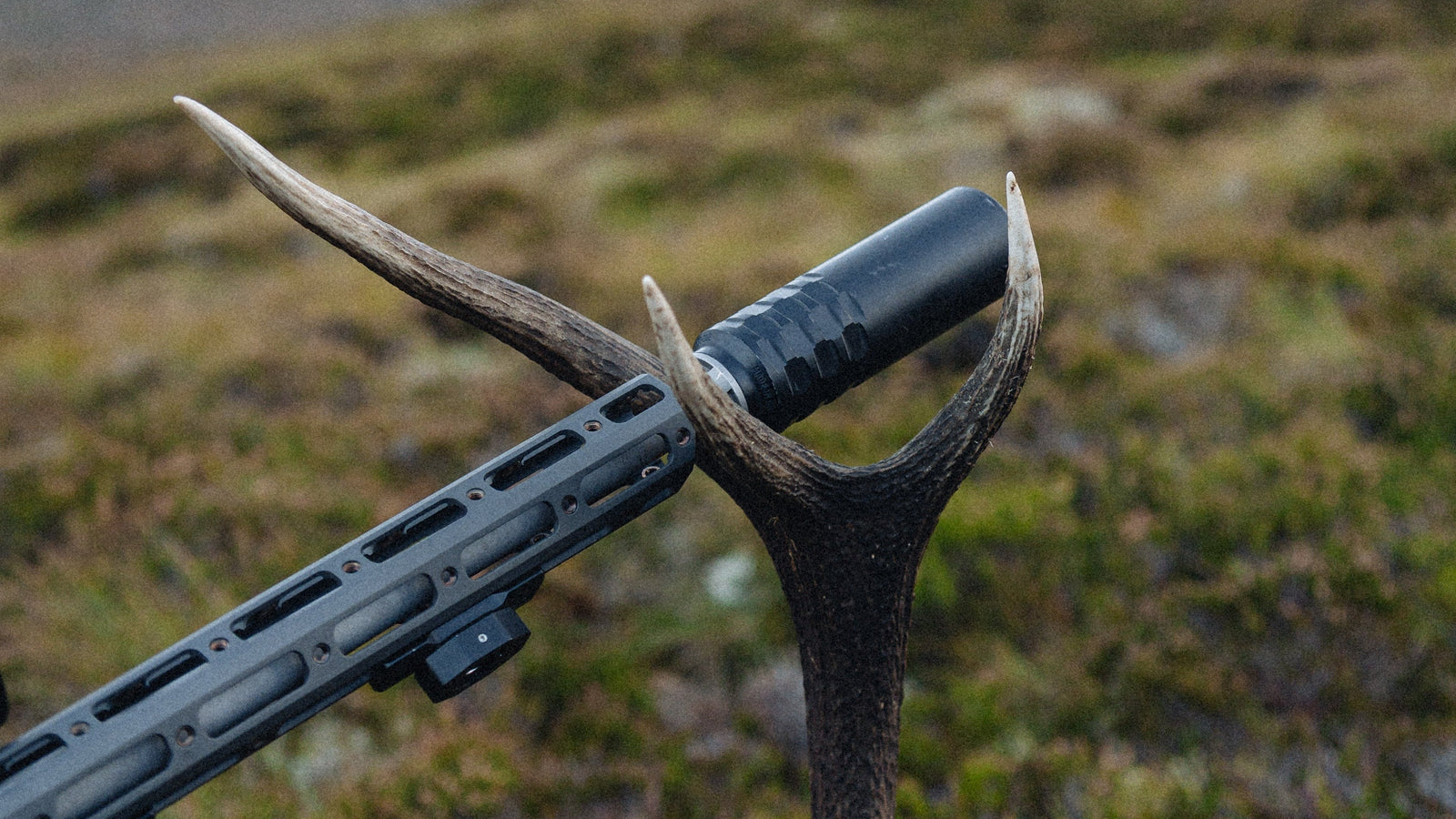

Q-Sert Disc-Lok™ Adapter - Product Guide

Installation

Installation of the Q-Sert adapter is simple and intuitive. Position the adapter into the desired Q-Sert slot on your forend. Insert one of the supplied M5 screws into the thread and use a 3 mm Allen key to tighten clockwise to approximately 2 Nm of torque. For a more permanent installation, a small amount of thread-locking compound (Loctite) can be applied to the screw threads before tightening.

Adapter Orientation

The orientation of the Disc-Lok™ Q Adapter is largely down to personal preference.

Many users choose to install the adapter with the grip to detent the adapter facing towards the end of the rifle, so that you can attach and detach the bipod by pulling the adapter towards you.

If preferred to push the adapter forward to release the bipod and detach, please attach the adapter the other way with the grip facing towards the rear of the rifle

Additional Screws

The 2 Friction adjustment Grub Screws are found on the Left and Right side of the Adapter and requires a 1.5mm HEX key. M3×4. Loosening each of these allows for slight movement and adjustment of the adapter mechanism, by fulling loosening them this allows for greater movement and disassembly of the adapter when fully removed.

The Traverse Locking Grub Screw Pin is located on the opposite side to the knurled detent, and requires a Torx 10 Key to adjust M5×10. By fully tightening this will remove the ability to quick detach, and locks your bipod to the adapter. By fulling loosening them this allows for greater movement and disassembly of the adapter when fully removed.

Need More Help?

If you need further assistance with compatibility or installation, please contact the Spartan support team at: help@javelinbipod.com
